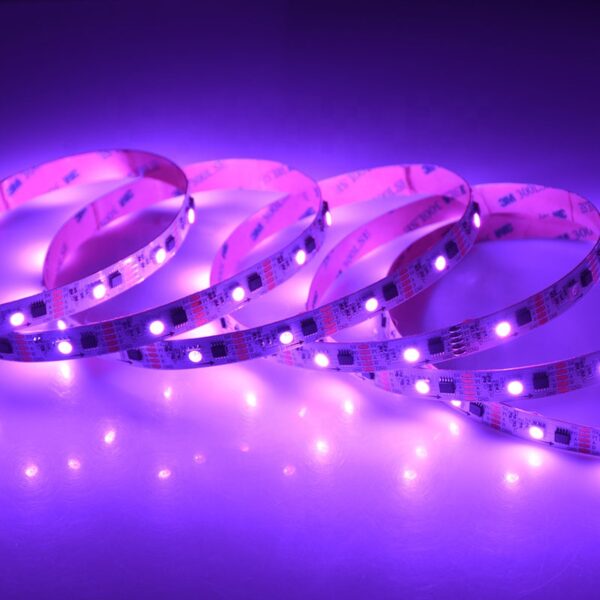

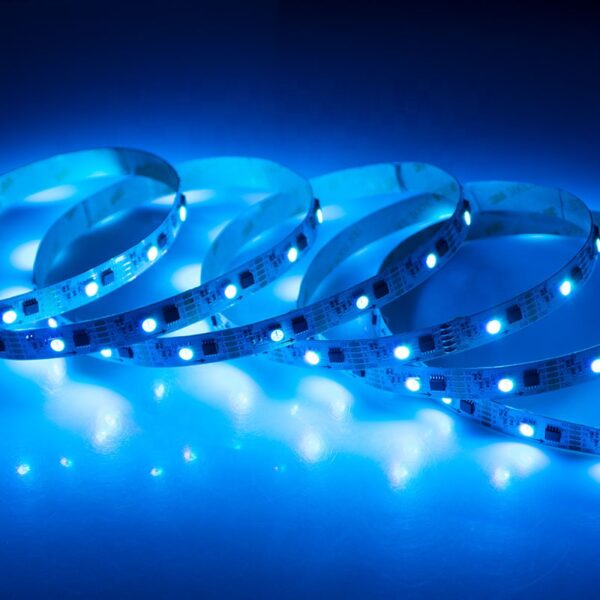

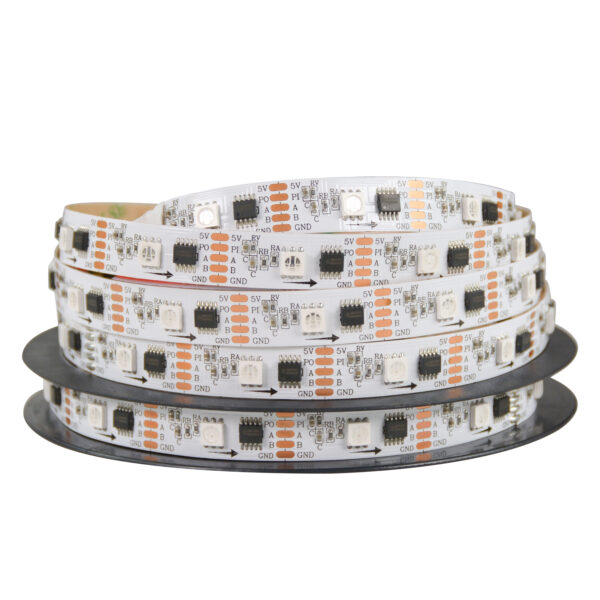

SMD5050 30LEDs/M DMX512 RGB LED Strip

SMD5050 30LEDs per meter 7.2W RGB DMX pixel LED strip light 1

SMD5050 30LEDs per meter 7.2W RGB DMX pixel LED strip light 2

Category Pixel RGB LED Strip Tags 30LEDs/M, 7.2W/M, DMX512, SMD5050

RGB addressable LED Pixel tape is designed to create versatile and dynamic lighting displays. Full color mixing can be achieved with added white intensity, deepening the capabilities of moods that can be created. Each individual pixel can achieve billions of color combinations.

Technical Parameters

Additional information

SMD Type	5050
LED Q'ty	30LEDs/M
Voltage	DC12V
Max. Power	7.2W/M
IC Type	DMX512
Pixel	5 pixel/m
PCB Width	12mm
Color	RGB
Cuttable Unit	1 LED/cut @12V
IP Rating	IP20, IP65, IP67, IP68

Top Features

✔ IC DMX512 protocol

✔ Double layer pure copper 2oz PCB

✔ Long lifespan >50,000 hours

✔ Safe low voltage DC12V

✔ Color changeable with a DMX controller

✔ 120° wide beam angle

✔ Compatible with various aluminum extrusions

✔ 3 years / 5 years warranty optional

✔ ETL, CE, RoHS certificated

Certifications

Applications

Shine Lighting designs and manufactures technologically advanced LED strip light and neon rope light products that provide value through quality, aesthetics and technology. Shine LED strips are installed in a wide variety of applications including:
